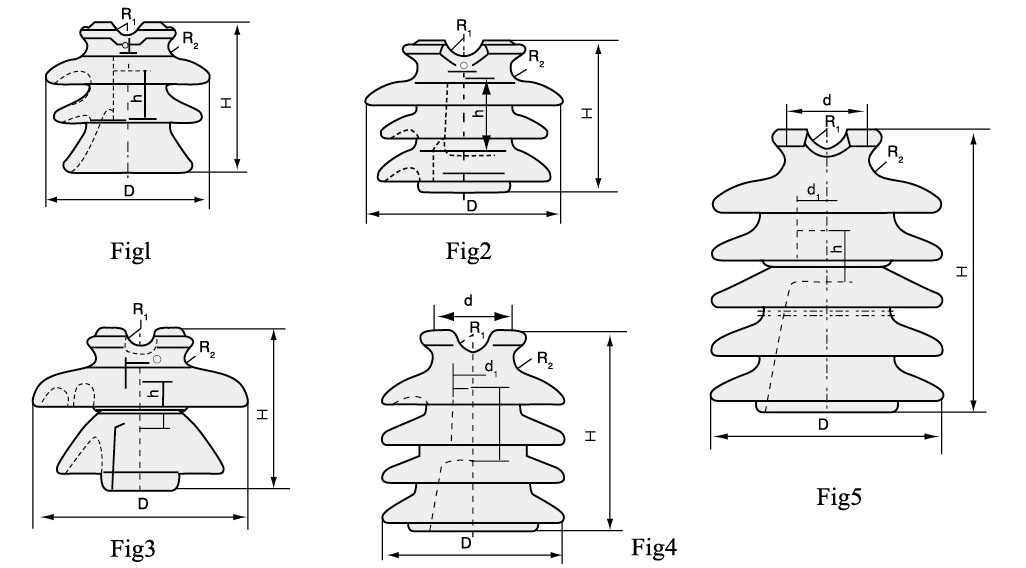

| Cat. No. | Type | Fig | Main dimensions (mm) | Creepage distance (mm) | Cantilever stength | Withstand voltage | Power frequency puncture voltage (kV) | Radio interference voltage | Used spindle | ||||||||
| D | H | d1 | h | R1 | R2 | d | One minute wet power frequency withstand voltage (kV) | Dry impulse withstand voltage (Peak) kV | Test voltage to ground (kV) | Max RIV at 1 MHz μV | |||||||
| A1001 | P-11-Y | 1 | 140 | 133 | 18.29 | 48 | 13 | 9.5 | 240 | 11 | 45 | 80 | 150 | 15 | 8000/100 | Small steel head | |
| A1002 | P-15-Y | 1 | 152 | 137 | 18.29 | 48 | 13 | 12.7 | 298 | 11 | 50 | 95 | 450 | 15 | 8000/100 | ||
| A1003 | P-22-Y | 2 | 230 | 165 | 27.78 | 52.63 | 19 | 14.3 | 432 | 11 | 70 | 125 | 200 | 22 | 12000/100 | Large steel head | |
| A1004 | P-33-Y | 3 | 279 | 244 | 27.78 | 52.63 | 19 | 13 | 630 | 13.8 | 90 | 170 | 210 | 30 | 16000/100 | ||
| A1005 | Pw-15-Y | 4 | 170 | 185 | 52.63 | 16 | 16 | 76 | 432 | 11 | 50 | 95 | 150 | 22 | 12000/100 | ||
| A1006 | Pw-22-Y | 5 | 205 | 255 | 52.63 | 16 | 16 | 76 | 673 | 11 | 70 | 125 | 200 | 30 | 16000/100 | ||
| A1007 | Pw-33-Y | 5 | 240 | 320 | 52.63 | 16 | 16 | 76 | 851 | 11 | 90 | 170 | 210 | 44 | 25000/100 | ||
