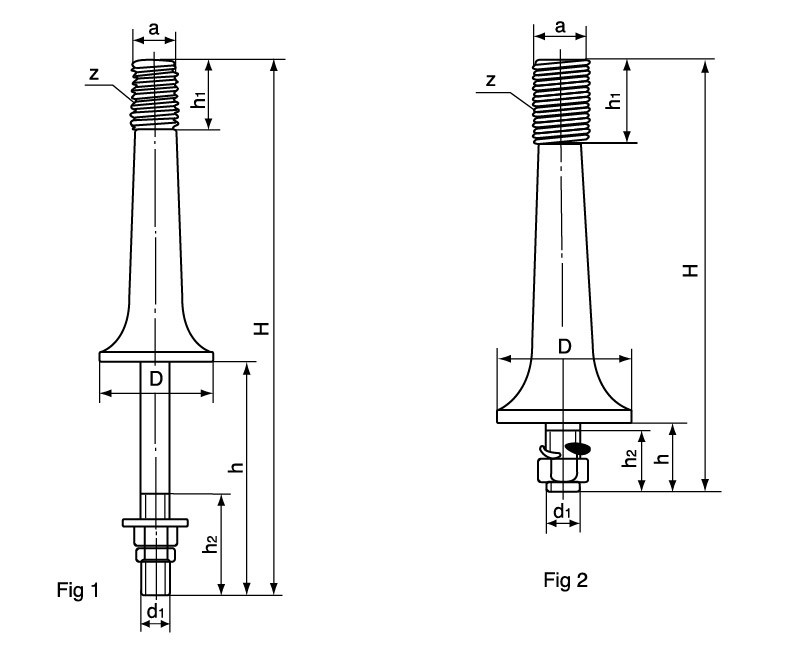

| 工厂代号 | 原代号 | 图号 | 主要尺寸 | 机械负荷 | 美标等级 | 重量 | ||||||
| H | D | h | h1 | h2 | a | d1 | ||||||
| A1023 | 12 | 1 | 330 | 76 | 178 | 51 | 76 | 34.9 | 20 | 11 | 56-1 | 1.9 |
| A1024 | 13 | 1 | 356 | 76 | 178 | 51 | 76 | 34.9 | 20 | 9 | 56-2 | 2.2 |
| A1025 | 16 | 1 | 407 | 89 | 178 | 51 | 76 | 34.9 | 20 | 10 | 56-3 | 2.5 |
| A1026 | 17 | 1 | 432 | 89 | 178 | 51 | 76 | 34.9 | 20 | 9 | 56-4 | 3.25 |
| A1027 | LM010M | 1 | 343 | 45 | 165 | 51 | 76 | 34.9 | 20 | 6 | 56-2 | 1.6 |
| A1028 | 19 | 2 | 198 | 76 | 45 | 51 | 40 | 34.9 | 20 | 11 | 56-1 | 1.54 |
| A1029 | 20 | 2 | 223 | 76 | 45 | 51 | 40 | 34.9 | 20 | 9 | 56-2 | 1.87 |
| A1030 | 23 | 2 | 274 | 89 | 45 | 51 | 40 | 34.9 | 20 | 10 | 56-3 | 2.17 |
| A1031 | 24 | 2 | 299 | 89 | 45 | 51 | 40 | 34.9 | 20 | 9 | 56-4 | 2.7 |
| A1032 | LM010T | 2 | 223 | 45 | 45 | 51 | 40 | 34.9 | 20 | 6 | 56-2 | 1.3 |
| A1033 | 13M(16) | 1 | 356 | 76 | 76 | 51 | 76 | 34.9 | 16 | 5 | 56-2 | 1.9 |
